滤袋热熔和切断流水线（ Hot welding and cut off Line ） |

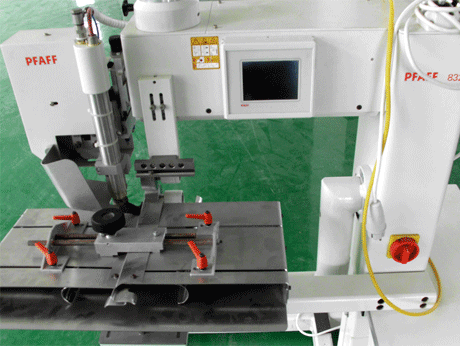

热 熔 机 Hot welding |
功 能 概 述：该生产线主要用于过滤袋的生产和输送
主要技术参数：
输送和切断尺寸：Max. 8000mm400mm / Mini 215mm200mm
滤袋厚度： 1 to 4mm
滤袋材料：PP PE
系统输送速度：10m/Min (变频可调)
生产节拍：20秒
系统总功率：小于5KW
电压: 400V ± 5% (3Phase +G) 50Hz
控制电压:DC24V频率:50Hz
Function description: it is mainly used for filter bag hot welding
and cut off.
Main technique parameter:
filter bag size:Max. 8000mm400mm / Mini 215mm200mm
filter bag thickness :1 to 4mm
filter bag material: PP PE
System transferring speed: 10m/Min (frequency conversion adjustable)
cycle time:20s
System power:5KW
Voltage: 400V ± 5% (3Phase +G) 50Hz
Control voltage:DC24V
Frequency:50Hz
|
 |
| |
|
|
Light check (光检流水线) |

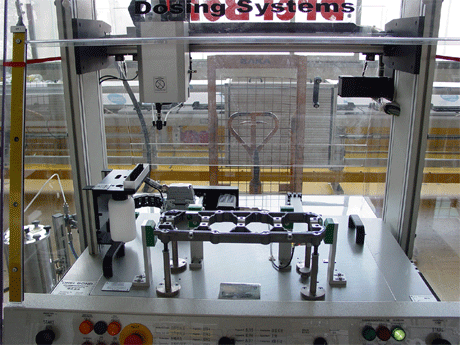

涂胶机 dosing machine |
• To improve the quality control of the production
by/本项目是为了改进玻璃生产的质量控制：
• ---Improving inspection condition (Lighting etc)/改进质检的条件（如灯光等）
• ---Improve inspection time减少质检时间
• Improving working place ergonomics 改进生产的人体工程学
Main technique parameter（主要技术参数）：
Glass size（输送玻璃尺寸）：Max. 1850mm1250mm / Mini 800mm400mm
Glass thickness（输送玻璃厚度）： 1.6 to 5mm
System transferring speed（系统输送速度）：40m/Min (变频可调)(frequency
conversion adjustable)
System power (系统总功率)：12KW
Voltage（电压）: 380V ± 5% (3Phase +G) 50Hz
Control voltage (控制电压):DC24V
Frequency(频率):50Hz
 |
 |
| |
|
|
汽车前挡玻璃输送机 Belt conveyor for glass |
Glass’s attachment installation (玻璃附件装配) |
| |
|
| |
|
|
3D design (设计) |
自动气门锁片压装The valve lock pressing |
| |
|
| |
|
|
加工用定位工装 Processing of positioning fixture |
定位工装 Positioning fixture |
| |
|
| |
|
|
非标设备 Special equipment |
工装及夹具 Tooling and Fixture |
| |
|
| |
|
|
呼吸过滤器密封测试设备 Leak Test Equipment For Breath
Filter |
曲轴密封测试设备 Leak Testing Equipment For The Crank
Axle |
| |
|
| |
|
|
管路密封测试设备 Leak Testing Equipment For Pipe |
博世铝型材流水线（BOSCH profile ） |
| |
|
| |
|
| |
|
| |
|
